Concepts

Sucata is a functional and modular game engine.

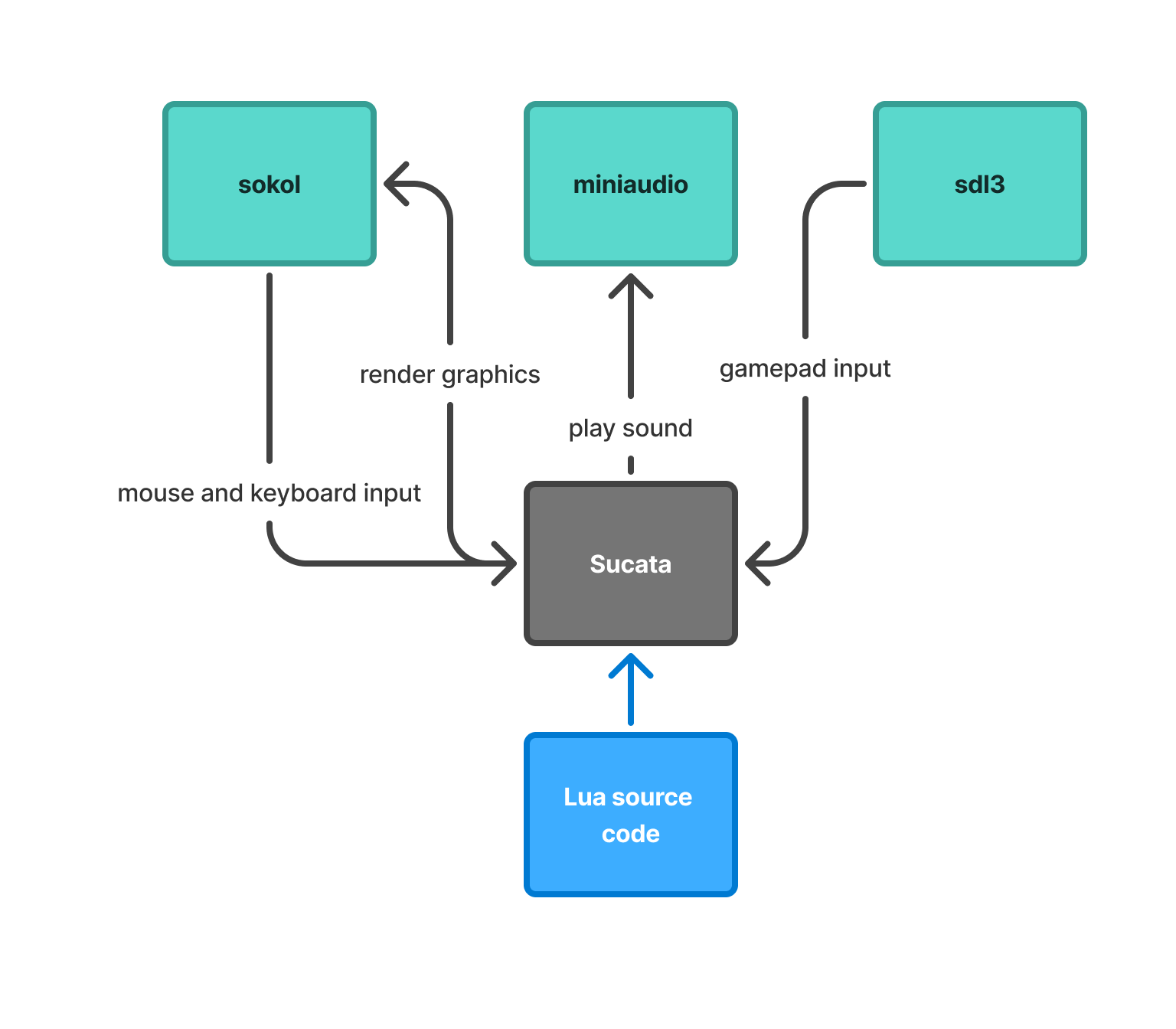

How the engine works?

The engine interprets the lua source code, registering actions, calling sokol for graphic render, miniaudio for play audio, receiving gamepad input from sdl, keyboard and mouse inputs from sokol, and any events call back some lua functions

Scene

A scene is a pool of entities, and it's the main way to organize your game, you can active a scene to load its entities.

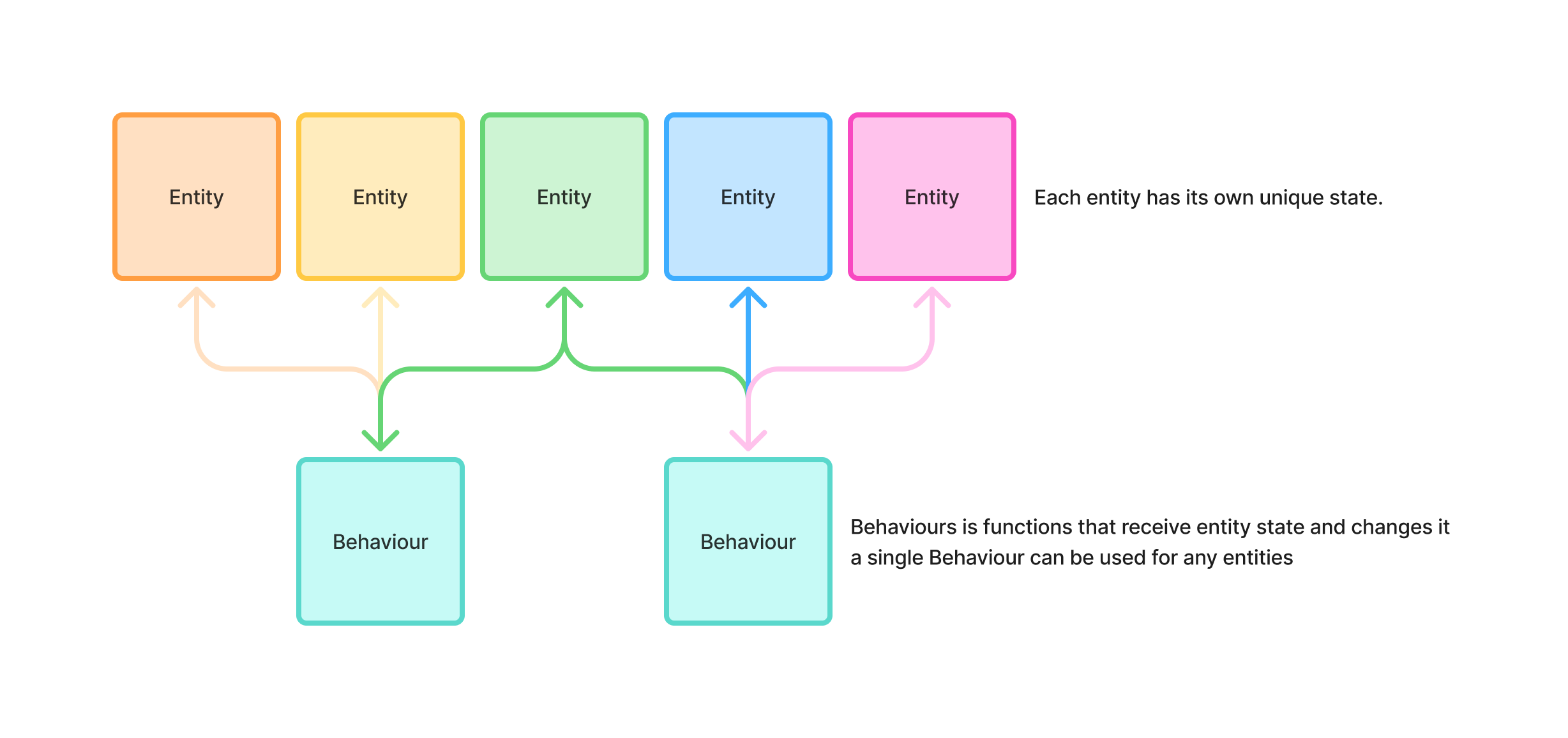

Entity

An entity is a table that contains state and behaviours, state is unique for the entity, behaviours it is scripts can be reused

State

The entity state contains all unique data about this entity, including your unique id

id

The unique id of the entity, generated by the engine when the entity is spawned.

Behaviours

You can define a list of behaviours that will be executed to changed state

Behaviours will be executing by the order defined

Behaviour

Behaviour is a table with a collections of stateless functions, that recieve an state and changes it, the design of the behaviour it is to be modular, small scripts that can be reused in many entities

init(state)

Called when the scene is loaded

This function will be called only once.

This function is optional, and you can omit it if you don't need execute any code when the entity is loaded.

tick(state)

Called every frame to update the entity

You can call sucata.time.get_delta() to get the time since the last frame, and use it to update the entity's data.

This function is optional, and you can omit it if you don't need execute any code every frame that the entity is loaded.

draw(state)

Called every frame to draw the entity

Normally used to draw graphics for the entity, using sucata.graphics functions.

This function is optional, and you can omit it if you don't need to draw any graphics for the entity.

free(state)

Called when the scene is unloaded

This function will be called only once, right before the entity is removed from the scene.

This function is optional, and you can omit it if you don't need to execute any command before the entity is removed from the scene.

Rendering

Render functions

Sucata have two functions to draw graphics: - sucata.graphic.rect({}) - Used to render rectangules, it can have textures - sucata.graphic.text({}) - Used to render texts using a font, or default font from the system

Render functions can only be called on draw() function from a behaviour

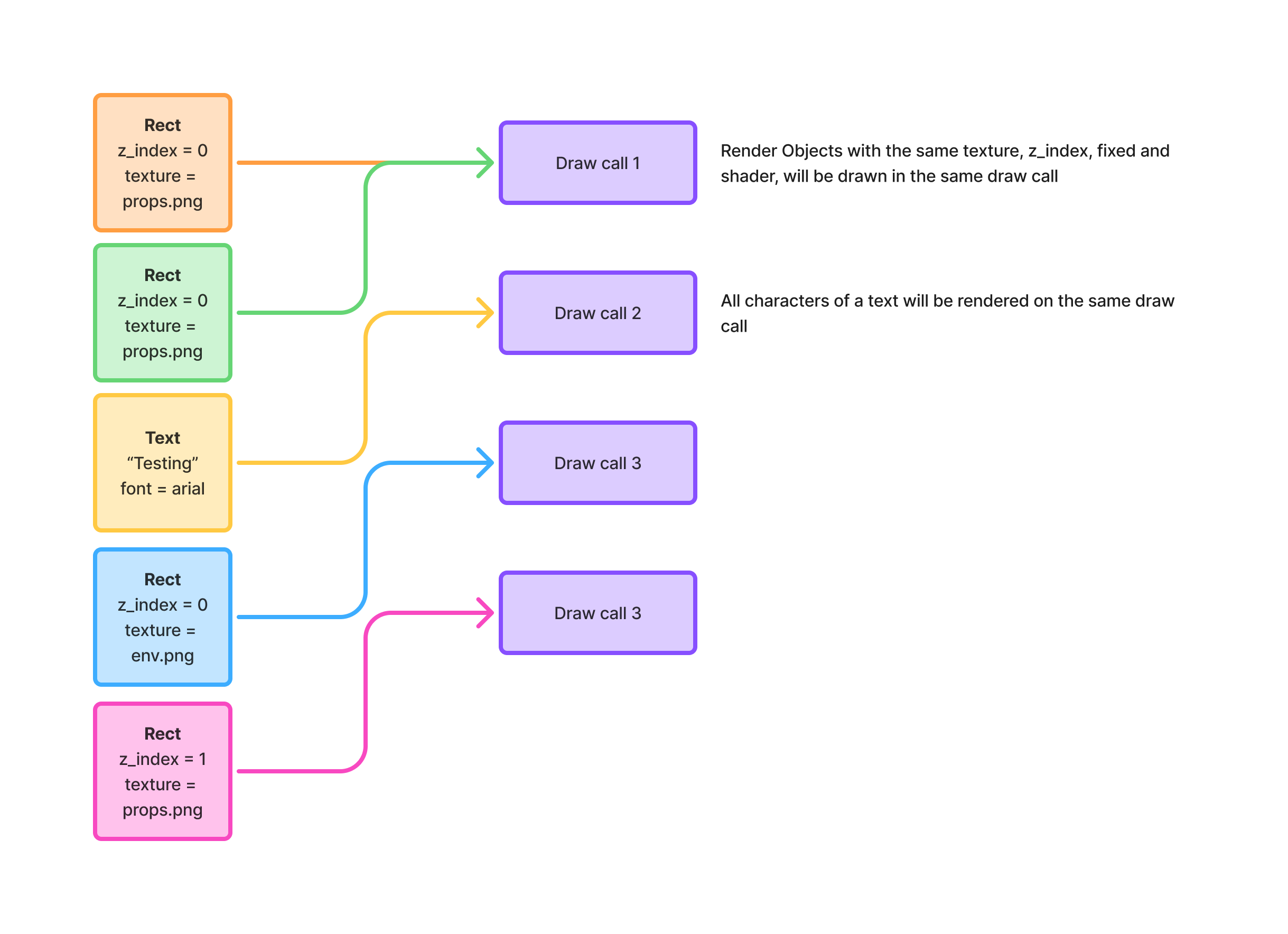

Render logic

Every frame sucata has a renderQueue, that has all request graphic render

For performatic reasons sucata tries to render all together, and to this work, sucata groups by draw call all graphic that have the same z_index, texture, fixed and shader.

Recommendation, always try to make draws with the same texture, so creates a tilemap and use atlas from sucata.graphic.draw_rect()

And for text, sucata draws each character in the same draw call.

Recommentation, always try to make all text in less sucata.graphic.draw_text calls you can

Relationships

The engine don't have hirarchy of entities, instead all entities have relationships with each other, and you can use the unique id of the entities to reference them, and create relationships between them.

For example:

local children_id = sucata.scene.spawn(Bullet())
self.children = children_id

In this example, we are spawning a new entity of type Bullet and storing its unique id in the children field of the current entity, so we can reference it later.

local bullet_entity = sucata.scene.find_by_id(self.children)
bullet_entity.x = self.x
bullet_entity.y = self.y

Building

To build your game in sucata you can run sucata build . and build the game for the operational system you are using

For now, while has a limitation that you can't cross build, but we plan to make cross build in the future

How build works?

In the sucata files, we have the sucata and sucata-player, sucata is the cli helper, that has all commands, and sucata-player is the executable that interprets the code and run, when you build the game, sucata copys the sucata-player, all DLLs and bundle all assets that you used in your source code into the assets.scta, after all that, sucata signs the copied sucata-player, to only run with the specified assets.scta, when you open the executable, will load the assets.scta and runs the game.
